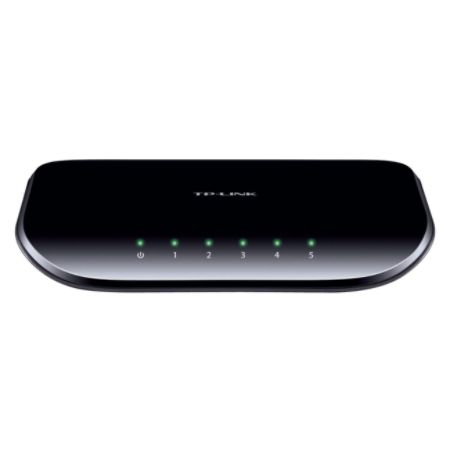

TP-LINK® 5-Port Gigabit Desktop Switch Item # 942091

 |
TP-LINK® 5-Port Gigabit Desktop Switch
$ 19 .99 / each $19.99
Add a Protection Plan (optional)  Learn More
Includes Coverage For Accidental Drops & Spills
In Stock
Estimated delivery 3-7 business days

  • Connect devices using the power-saving Ethernet 10/100/1000Mbps unmanaged 5-Port Gigabit desktop switch
  • 5 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX.

    Description

    The TL-SG1005D 5-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files and other applications that have to move large files across the network almost instantly.

    • Connect devices using the power-saving Ethernet 10/100/1000Mbps unmanaged 5-Port Gigabit desktop switch
    • 5 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX.
    • IEEE 802.3x flow control provides reliable data transfers.
    • Desktop or wall-mounting design.
    • Green Ethernet technology saves the power up to 70%.
    • Plug and play means no configuration required.
    • Includes plastic case.
    Back To Top

    Product Details

    Item # 942091
    OfficeMax # 24025341
    Manufacturer # 3298570
    Ethernet Technology Gigabit Ethernet; Fast Ethernet
    power source AC Adapter
    Total Number of Network Ports 5
    height 1.7 in
    Additional Information Transfer Method:Store-and-Forward
    Number of Network (RJ-45) Ports 5
    width 7.3 in
    Manageable No
    depth 5.7 in
    Product Name TL-SG1005D 5-port Unmanaged Gigabit Switch
    manufacturer TP-LINK
    brand name TP-LINK
    Port/Expansion Slot Details 5 x Gigabit Ethernet Network
    Layer Supported 2
    ports RJ-45
    form factor Wall Mountable; Desktop
    model name TL-SG1005D
    Network Technology 10/100/1000Base-T
    Show More ▾
    Back To Top

      Customer Reviews

      Rated 5 out of 5�by 1 reviewer.
      Rated 5 out of 5 Great value! I needed another switch and I bought this one because it was inexpensive, was supposed to be energy-saving, and was well-reviewed across the net. It works very well, and it runs cool - barely warm to the touch. Heat is wasted electricity and ultimately challenges component reliability. March 17, 2014
      • 2016-03-26 T06:48:12.141-05:00
      • bvseo_lps, prod_bvrr, vn_prr_5.6
      • cp-1, bvpage1
      • co_hasreviews, tv_1, tr_1
      • loc_en_US, sid_942091, prod, sort_default
      1-1 of 1
      Back To Top

      From the Manufacturer|Powered by Webcollage

      Thank You Is the information in this section helpful? Yes / No

      Overview

      • 5-Port Gigabit Desktop Switch

        The TP-LINK TL-SG1005D 5-Port Gigabit desktop switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Diagnostic LED indicators help you quickly detect and respond to network problems. Adopting lower power consumption design and innovative energy-efficient technology, the TL-SG1008D can save up to 85%1 of the power consumption, making it an eco-friendly solution for your home or office network.

      • Gigabit Switch

        Featured with five 10/100/1000Mbps ports, TL-SG1005D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

      • Go Green with Your Ethernet

        You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1005D 5-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
      • Power down Idle Ports
        When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1005D can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 85% reduction in power use.

        Power Budget According to Cable Length
        Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

      • Easy to Use

        The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

      • Faster Network Response Times

        The non-blocking switching architecture adopted in the Five-Port Unmanaged Gigabit Desktop Switch greatly improves network response times and significantly speeds up the traffic between subnets by forwarding and filtering packets at full wire speed for maximum throughput.

      • Diagnostic LED Indicators

        The TL-SG1005D switch features diagnostic LEDs that display link status and activity, enabling you to quickly detect and correct problems on the network.

      • Universal System Compatibility

        The TL-SG1005D is compatible with all 10, 100, and 1,000 Mbps Ethernet devices, allowing you to protect your existing investments while migrating to a faster network.

      • Industry-Leading Warranty and Support

        Industry-Leading2 2-year warranty, 24/7 unlimited technical support by phone (1-866-225-8139) and email (support.usa@tp-link.com)
      See More:

      Comparison Chart

      5-Port Gigabit Desktop Switch 8-Port Gigabit Desktop Switch 5-Port 10/100/1000Mbps Desktop Switch 8-Port 10/100/1000Mbps Desktop Switch 16-Port Gigabit Switch 24-Port Gigabit Switch
      Model Number TL-SG1005D TL-SG1008D TL-SG105 TL-SG108 TL-SG1016 TL-SG1024
      Port Type Gigabit Gigabit Gigabit Gigabit Gigabit Gigabit
      Number of Ports 5 8 5 8 16 24
      Size Desktop (6.5-inch) Desktop (6.5-inch) Desktop (4-inch) Desktop (6.2-inch) 19-inch 19-inch
      Material Plastic Plastic Metal Metal Metal Metal
      AUTO MDI/MDIX
      Yes
      Yes
      Yes
      Yes
      Yes
      Yes
      IEEE 802.3X Flow Control
      Yes
      Yes
      Yes
      Yes
      Yes
      Yes
      Power Saving
      Yes
      Yes
      Yes
      Yes
      Yes
      Yes
      Plug and Play
      Yes
      Yes
      Yes
      Yes
      Yes
      Yes

      Features

      • Innovative energy-efficient technology saves power up to 70%
      • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
      • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
      • 16Gbps Switching Capacity
      • 9K Jumbo frame improves performance of large data transfers
      • Auto-MDI/MDIX eliminates the need for crossover cables
      • Supports MAC address auto-learning and auto-aging
      • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
      • Fanless design ensures quiet operation
      • Desktop or wall-mounting design
      • Plug and Play design simplifies installation

      Package Content

      • 5-Port Gigabit Desktop Switch
      • Power Adapter
      • User Guide
      1. 1 Maximum power savings when compared to a TP-LINK conventional switch, the real saving rate may vary based on the usage condition.
      2. 2 Compared to the warranty and tech support that other leading brands of networking and consumer electronics products provide
